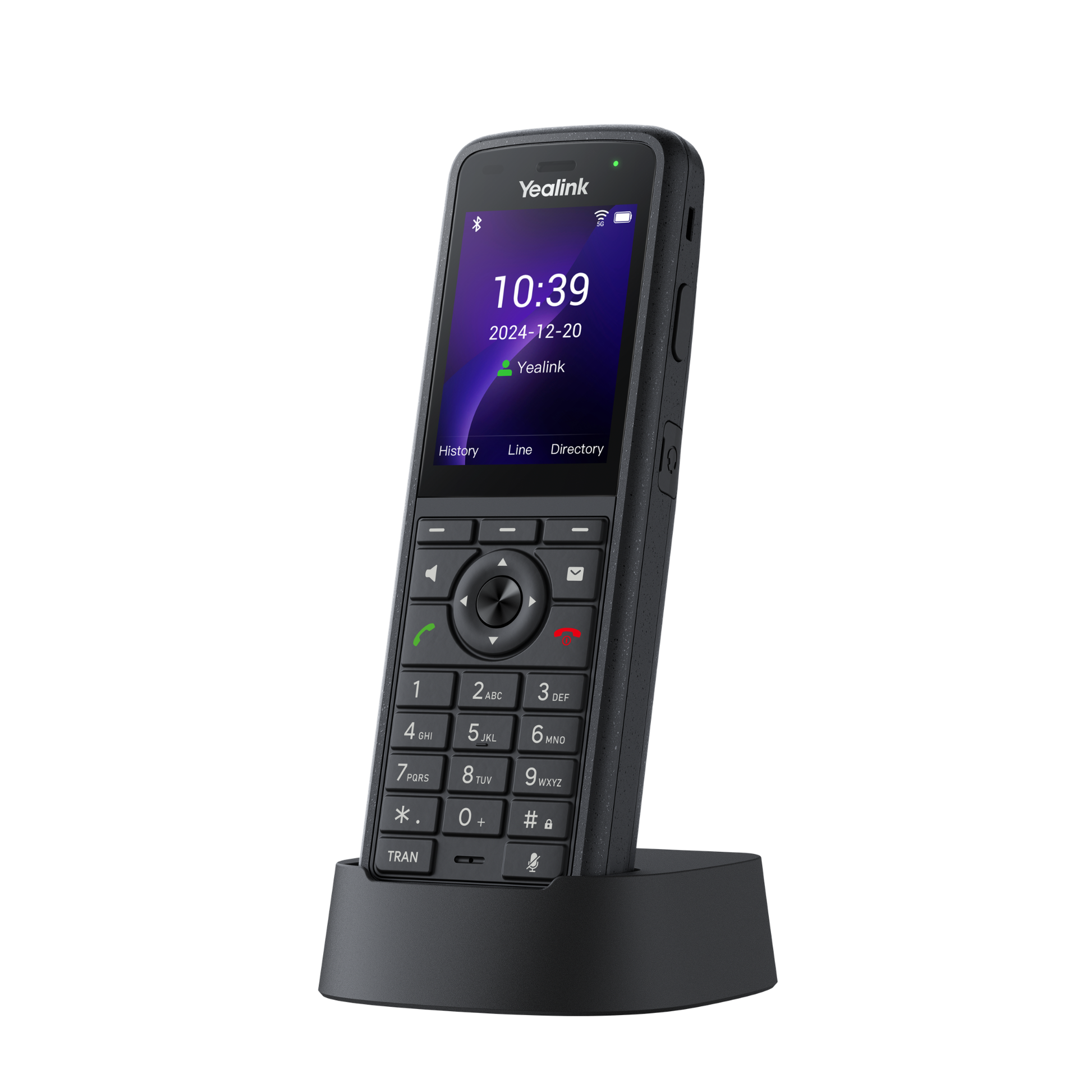

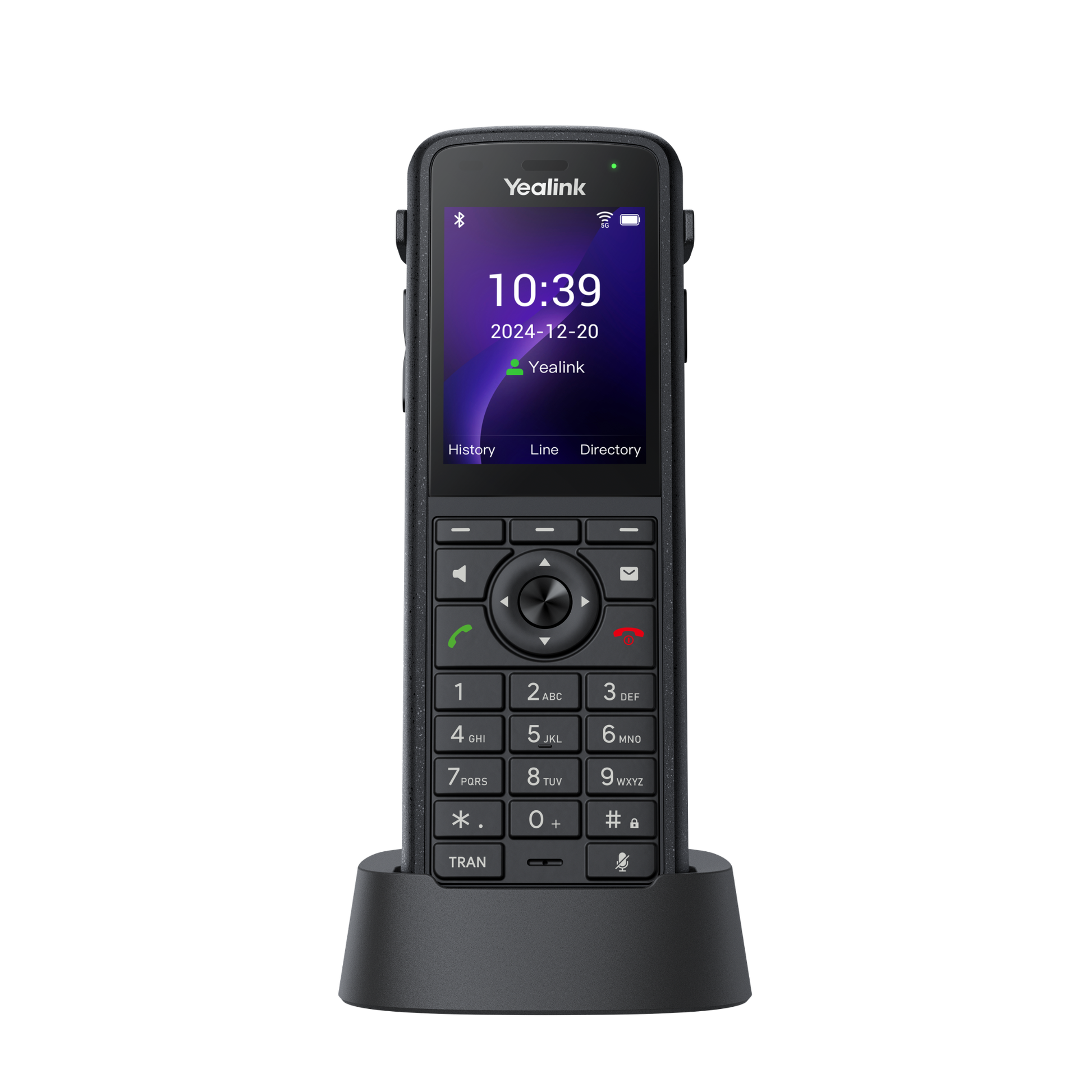

A rugged Wi-Fi 6 cordless handset with IP67 sealing, a 2.4-inch colour display and personal safety alarms. Suited to staff who need to take calls while moving around a site rather than sitting at a desk.

Built For Staff Who Move Around The Site

Staff who spend the day walking a warehouse, ward, hotel or plant room cannot be tied to a desk phone, and a handset that dies mid-shift or cracks on the first drop is worse than no handset at all. The Yealink AX86R is a cordless Wi-Fi handset that connects over Wi-Fi 6 without a base station, carries an IP67 rating and a 1.8 m drop rating, and includes push-button, no-movement, man-down and running alarms plus a PTT key. It weighs 218 g, runs HD voice with full-duplex speakerphone and Acoustic Shield noise cancellation, and adds Bluetooth 5 and a 3.5 mm headset jack.

Coverage And Range

The AX86R runs on Wi-Fi 6 (802.11ax) across dual-band 2.4 GHz and 5 GHz. It supports 802.11k/v/r seamless roaming, so calls hand over between access points as the user walks the site.

Battery Life

The 3100 mAh lithium-ion battery delivers up to 13 hours of talk time and up to 300 hours of standby, both figures based on laboratory data. Charging is over USB-C.

System Capacity

The handset registers up to 4 SIP accounts and hosts conference calls with up to 5 parties. The phonebook holds up to 1000 entries, and no base station is required.

Built To Last

Rated IP67 with a 1.8 m drop rating and an antimicrobial housing, the 218 g handset operates from 0 to 40°C and ships with a belt clip. A dedicated PTT key sits alongside push-button, no-movement, man-down and running alarms.

Key Features

  • Wi-Fi 6 (802.11ax) Connectivity
  • Dual-band 2.4 GHz and 5 GHz operation
  • 802.11k/v/r seamless roaming between access points
  • No base station required
  • 3100 mAh lithium-ion battery: up to 13 hours talk and up to 300 hours standby (laboratory data)
  • USB-C charging interface
  • IP67 rated with a 1.8 m drop rating and antimicrobial housing
  • Push-button, no-movement, man-down and running alarms with a dedicated PTT key
  • 2.4-inch 240x320 colour display
  • HD voice with full-duplex speakerphone, Acoustic Shield noise cancellation and hearing aid compatibility
  • Bluetooth 5 and a 3.5 mm headset jack
  • Up to 4 SIP accounts and 5-party conferencing

Frequently Asked Questions

Does The AX86R Need A Base Station?

No. It registers over your Wi-Fi network directly to your SIP phone system, so there is no separate DECT-style base station to buy or mount.

What Do I Need To Get It Working?

Two things: a wireless LAN it can join, and a SIP account. It connects on dual-band 2.4 GHz or 5 GHz using Wi-Fi 6 (802.11ax), and holds up to 4 SIP accounts from a SIP-based phone system or hosted VoIP service. If your access points support 802.11k/v/r, the handset will use them to roam between APs during a call.

How Long Does The Battery Last?

The 3100 mAh lithium-ion battery is rated at up to 13 hours talk time and up to 300 hours standby. Those are laboratory figures, so treat them as a ceiling rather than a shift-planning number: real results depend on Wi-Fi signal strength, screen use, roaming and how much of the day is spent on active calls. Charging is over USB-C, and the handset ships with an AC power adapter (100~240V input, DC 5V/2A output).

What Sort Of Range Will I Get?

Range is set by your own Wi-Fi coverage, not by the handset, because it uses your access points rather than a dedicated base station. Where coverage overlaps, 802.11k/v/r seamless roaming lets a call hand over from one access point to the next as the user moves. On large sites it is worth confirming your wireless survey covers the areas staff actually walk, including stairwells and cold rooms.

Can I Use A Headset With It?

Yes. There is a 3.5 mm headset jack, and Bluetooth 5 for wireless headsets. The handset also has a full-duplex speakerphone for hands-free use, and it is hearing-aid compatible.

How Rugged Is It, And Is It Suitable For Healthcare?

It is IP67 rated for dust and water ingress and carries a 1.8 m drop rating, with an operating range of 0 to 40°C and 10%-95% humidity. The housing is antimicrobial, which is why it turns up in aged care and clinical settings. For lone-worker duty it includes push-button, no-movement, man-down and running alarms plus a push-to-talk key, and a belt clip is included.

Product Datasheet

Download The Datasheet (PDF)
